- 제품명

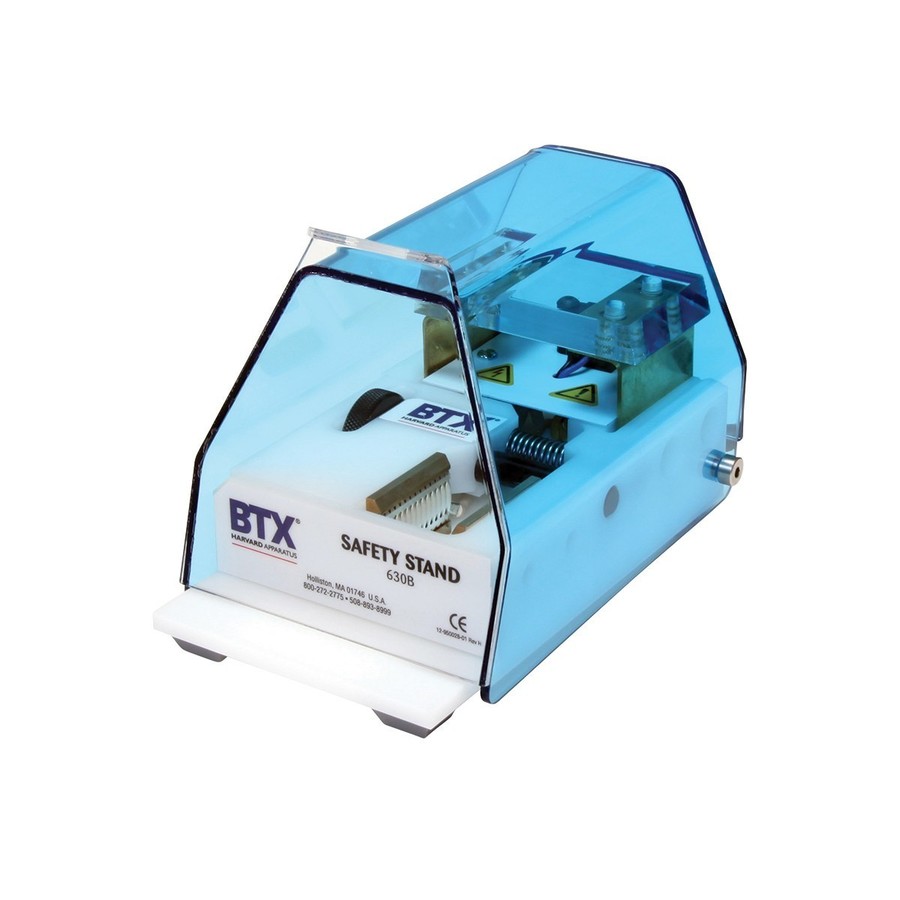

- SAFETY STANDS FOR CUVETTES & CHAMBERS
- 제조사
- BTX
- 개요
- 큐벳과 챔버에 HV 전기 펄스를 안전하게 전달합니다.
Related Information
제품자료
Safety Stands for cuvettes and chambers, the Gemini Safety Dome for cuvettes, and the PEP cuvette module are used with BTX electroporation systems. Connect to a generator for safe delivery of high voltage electrical pulses to cuvettes or flatpack chambers. Up to two cuvettes may be electroporated in a Cuvette Safety Stand or Gemini Safety Dome simultaneously. The PEP holds one cuvette. Extended Capacity Safety Stands for Flatpack accept either up to two cuvettes at a time or one flatpack at a time for electroporation of up to 10 ml of cell suspension.
SAFETY STAND SELECTION GUIDE
| Item # | Product | Connector Style | Compatible Chambers | Compatible Generators |
|---|---|---|---|---|
| 45-2021 | Gemini X2 Safety Dome | 4 mm banana cables | Cuvettes | Gemini X2, ECM 399, ECM 630, ECM 830 |
| 45-2020 | Gemini SC Safety Dome | Gemini SC connector with safety interlock | Cuvettes | Gemini SC |
| 45-0207 | Safety Stand, Adjustable Gap (for use wih cuvettes) | 4 mm banana cables | Cuvettes | Gemini X2, ECM 399, ECM 630, ECM 830 |
| 47-0203 | AgilePulse MAX Safety Stand for Cuvettes | BNC cable | Cuvettes | AgilePulse MAX, ECM 2001+ |
| 45-0212 | PEP Personal Electroporation Pak Cuvette Module | 4 mm pin tips | Cuvettes | ECM 399 |
| 47-0208 | Legacy ECM 2001 Safety Stand for Flatpack | 4 mm banana cables, 4 mm F/F adapters | Cuvettes and Flatpacks | Legacy ECM 2001 |
| 47-0209 | AgilePulse MAX Safety Stand for Flatpack | BNC cable | Cuvettes and Flatpacks | AgilePulse MAX, ECM 2001+ |
| 47-0205 | Legacy ECM 2001 Chamber Holder for Large Volume 5 ml Chambers | 4 mm banana cables, 4 mm F/F adapters | 5 ml Large Volume Chambers | Legacy ECM 2001 |
| 47-0202N | AgilePulse MAX Chamber Holder for Large Volume 5 ml Chambers | BNC cable | 5 ml Large Volume Chambers | AgilePulse MAX, ECM 2001+ |
