제품명
ENHANCER 3000 MONITORING SYSTEMS
제조사
BTX
개요
전기천공 응용 프로그램을 수행하는 동안 중요한 매개변수를 모니터링합니다.

Related Information

제품자료

The Enhancer 3000 Monitoring System allows researchers to maintain efficiencies, optimize both electrical and biological parameters, view sample runs, troubleshoot possible problems and easily perform routine quality control.

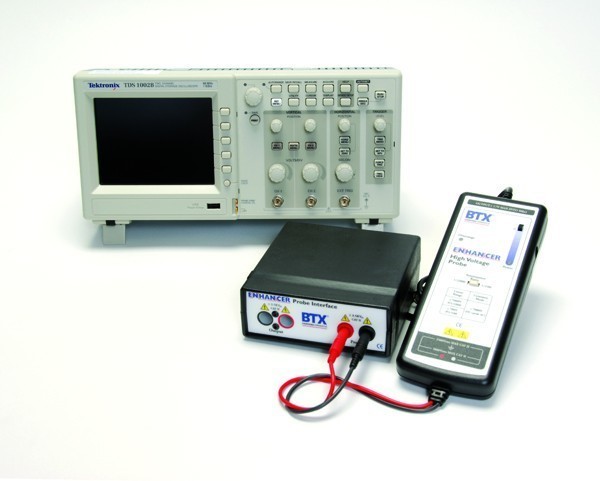

The Enhancer 3000 simply interfaces between the generator and the electroporation chamber (safety stand or BTX electroporation plate handler).

Key Features

  • Confirms and tracks all key electroporation parameters including waveform, pulse lengths, peak amplitude, pulse intervals, field strength, and AC duration
  • Monitors all waveforms for optimization or troubleshooting of electroporation parameters
  • Facilitates calculation of field strength, pulse length, pulse duration or frequency
  • Safe connections protect user from exposure to high voltage

 Included Items

Item # Name Included Items
45-0057 Enhancer 3000 Interface box, Enhancer 3000 Probe, and cables
45-0059 Enhancer 3000SC Interface box, Oscilloscope, Enhancer 3000 Probe, and cables
45-0071 ECM 630 Enhancer System ECM 630 Exponential Decay Wave Electroporation System (45-0001) and Enhancer 3000 (45-0059), Enhancer 3000 Probe, Enhancer Interface Box, Oscilloscope
45-0072 ECM 830 Enhancer System ECM 830 Square Wave Electroporation System (45-0002) and Enhancer 3000 (45-0059), Enhancer 3000 Probe, Enhancer Interface Box, Oscilloscope
45-0013 ECM 2001 Enhancer System ECM 2001 Electroporation System (45-0011) and Enhancer 3000 (45-0059), Enhancer 3000 Probe, Enhancer Interface Box, Oscilloscope with USB communications
45-0471 HT 630 Enhancer System ECM 630 Generator (45-0051), 2 mm HT Plates, HT 200 Plate Handler (45-0401) and Enhancer 3000 (45-0059)
45-0472 HT 830 Enhancer System ECM 830 Generator (45-0052), 4 mm HT Plates, HT 200 Plate Handler (45-0401) and Enhancer 3000 (45-0059)

   Note: Digital storage oscilloscope is required to display waveforms.
